SAK.pdf

Origin：USA

Brand：Lawson-Hemphill

Overview:

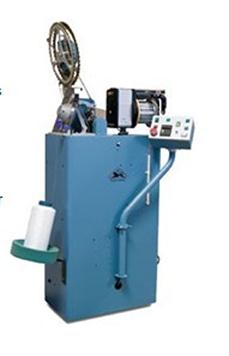

In today’s modern textile mills, where quality and cost cutting are most important, there is a great need for high volume testing. Many of today’s testing instruments do not have an automatic yarn changer, requiring an operator, which is very costly. Lawson Hemphill offers you a solution with the new Air SAK (Sample Automatic Changer).

The new SAK allows the operator to service and operate more than one machine simultaneously, saving operator costs and reducing down time of testing instruments. For example, with the 48-position rotary magazine one can preload up to 36 ends at one time. If the test duration per sample is one minute, the SAK will run continuously for 36 minutes before the operator will have to supply more yarn. The SAK provides start and stop signals to a host instrument.

The mechanics of the system include a modern programmable controller used in conjunction with pneumatic cylinders to execute the knotter and rotary magazine with rapier. This provides dependable operation with little maintenance.

Features:

Sequentially and automatically knot preset sample lengths of yarn into a continuous thread line to automate testing equipment such as lab knitting machines, entanglement tester, shrinkage tester and others.

Knotted yarn samples may be produced up to 500 meters per minute.

Run your test by loading the SAK directly from a creel. Yarn packages to be sampled can be fed with a variety of creel systems to suit customer’s requirements.

Substantial labor savings. Allows one operator to operate more than one testing equipment.

New SAK-HD for high denier (up to 3800)
